Project Description

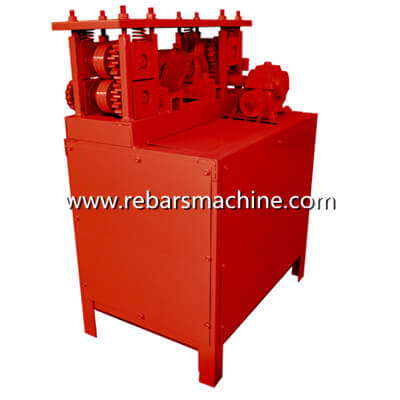

  • MY2-5 wire straightener machine

As the name implies, it’s a machine used for straightening bent wire or scrap wire

  • Video of the wire straightener machine

  • Specific of the wire straightener machine

Machine ModelMY2-5
Straight CapacityØ2mm-Ø5mm
Straightening Motor3Kw
Speed20m per minute
GW/NW120Kg/100Kg
Package Dimension67*50* 85cm

  • How to use the wire straightener machine , let’s introduce the machine composition as follows

scrap rebar shapes

  • Any shapes of bent wire or scrap wire

Not only such shapes in the above picture, it can also straight any shapes of bent bar, scrap bar, most shapes of scrap rebar

reduction gears of MY2-5 wire straightener machine

  • Reduction gears box

This is a small reduction gears box, before using the machine, it needs 0.5kg machine oil, and oil hole is marked with yellow line

import hole of MY2-5 wire straightener machine

  • Import wire hole

Input wire here, and the security strip (which is marked by yellow line) is moveable (left or right), to adapt different channel (channel on rollers, which adapt for different wire diameter 2mm-5mm)

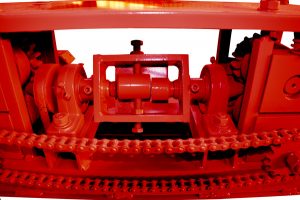

MY2-5 wire straightener rollers

  • Wire straightener rollers

When machine is running, the wire straightener roller &frame will roll in high speed, this device is used for straightening wire. There are 2 bolts as opposite party, adjust them to have a better straightening performance for different diameter wires,

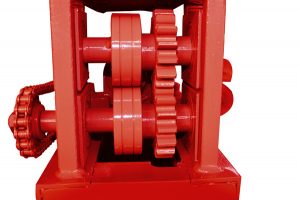

export hole of MY2-5 wire straightener machine

  • Export wire hole

These 2 rollers pull out straighten wire without human sources

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,3Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter wire this machine can straight

Size:5mm-12mm

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page

Instruction Manual
