Project Description

  • MY10-25 bar straightener machine

As the name implies, it’s a machine used for straightening bent bar,scrap bar,twisted bar and others,straightening accuracy could be 90%+

  • Video of the bar straightener machine

  • Specific of the bar straightener machine

Machine ModelMY10-25
Straight CapacityØ10mm-Ø25mm
Straightening Motor15Kw
Straightening speed20m/minute
GW/NW900Kg/850Kg
Package Dimension138*113*133cm

  • How to use the bar straightener machine, let’s introduce the machine composition as follows,

scrap rebar shapes

  • Any shapes of bent bar

Not only such shapes in the above picture, it can also straight any shapes of bent bar, scrap bar, most shapes of scrap bar

Import hole of MY10-25 bar straightener

  • 10mm-25mm range

Import hole,import iron bar through these holes, it has 8 holes adapt to different size iron bar, there are 8 numbers which indicate hole size, 10mm,12mm,14mm,16mm,18mm,20mm,22mm,25mm

Export hole of MY10-25 bar straightener

  • Export hole

Straighten iron bar will be exported through these holes, different with import hole, export hole has 8 pcs conduits, which also indicate hole size,

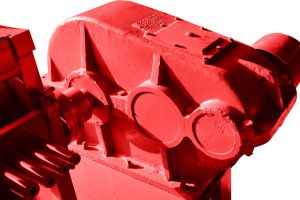

reduction gears box of MY10-25 bar straightener machine

  • Reduction gears box

This is a powerful reduction gears box, it can pull and straight 25mm iron bar easily,

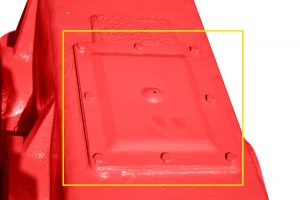

Reduction gears oil hole cover of MY10-25 bar straightener

  • 25kgs machine oil

Before using the machine, it needs 25kgs machine oil, open the square cover, and inject 25kgs machine oil to keep gears working in lubricating state

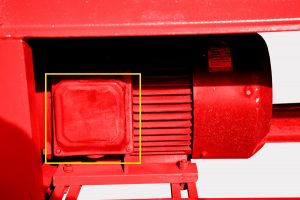

Electric motor of MY10-25 bar straightener

  • 15Kw electric motor

This machine fixed with a 15kw electric motor, three phase, 380V or any other voltage as you need, we supply customized electric motor. Connect power line to this square box

  • FAQ

1- What electricity for this machine?

Conventional supplying,380V, three phase,15Kw; for sure, we can also supply 220V, 400V,440V,600V and any others

2- What diameter bars this machine can straight

10mm-25mm

3- Is there agent in our country?

We have many customers worldwide, and we do have agents in some countries, for more details,please contact with us

4- I’m an end user, I need just 1 piece of machine

We do supply any quanties to customers, but as an export shipment, cost will be higer much for small shipment

5- What’s your payment?

T/T in company account, or Western Union for personal,

  • Machine order delivery

  • How to use this machine

If you want to know exactly how to use this machine,or if you already got such a machine, please move your step to instruction manual page

instruction manual
